FOR 1969-1971 280SL AND 1973-1975 450SL (117.982 UP TO 030108) LATE STYLE PUMP WITH TAPERED OR CONICAL SHAFT. IF INSTALLING ON A PRE-1969 VEHICLE OR ARE REPLACING A PUMP WITH THE CYLINDRICAL SHAFT, YOU MUST REPLACE THE PUMP PULLEY WITH PART # 46-2120B.

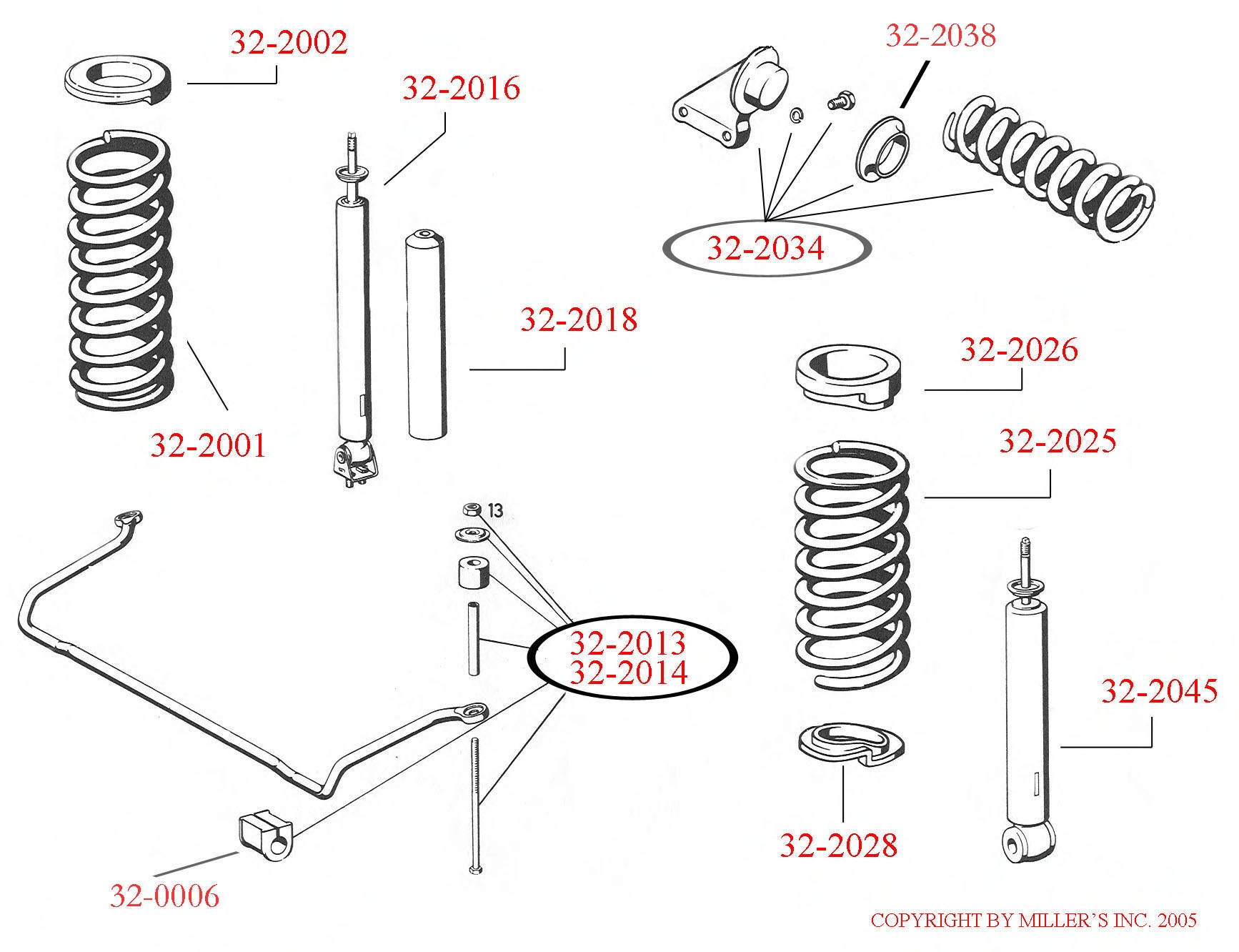

URETHANE FRONT SWAY BAR END LINK BUSHING
QTY NEEDED PER CAR MODEL
W108 (250/280)
W109 (300/6.3)
W110 (190/200/230)
W111 (220/250/280)
W112 (300)
W113 (230/250/280SL)
8
8
8
8
8
8
RUBBER FRONT SWAY BAR TO FRAME
QTY NEEDED PER CAR MODEL
W108 (250/280)
W109 (300/6.3)
W110 (190/200/230)
W111 (220/250/280)
W112 (300)
W113 (230/250/280SL)
Front sway bar to frame - 22mm
2
2 early
2 late
Front sway bar to frame - 23.85mm
2
2 late
Front sway bar to frame - 20.34mm
2
2 early
2 late
NOTE: Before selecting a front sway bar frame bushing, please measure the bar diameter first. Use either a flexible tape or a pair of calipers as shown. Do not use a flat ruler.
With Calipers
With flexible tape
If using an inch tape – take measurement and divide by 3.142 to get the diameter.
To convert from inches to mm, simply multiply by 25.4.
In both cases, this sway bar measures 24mm.
