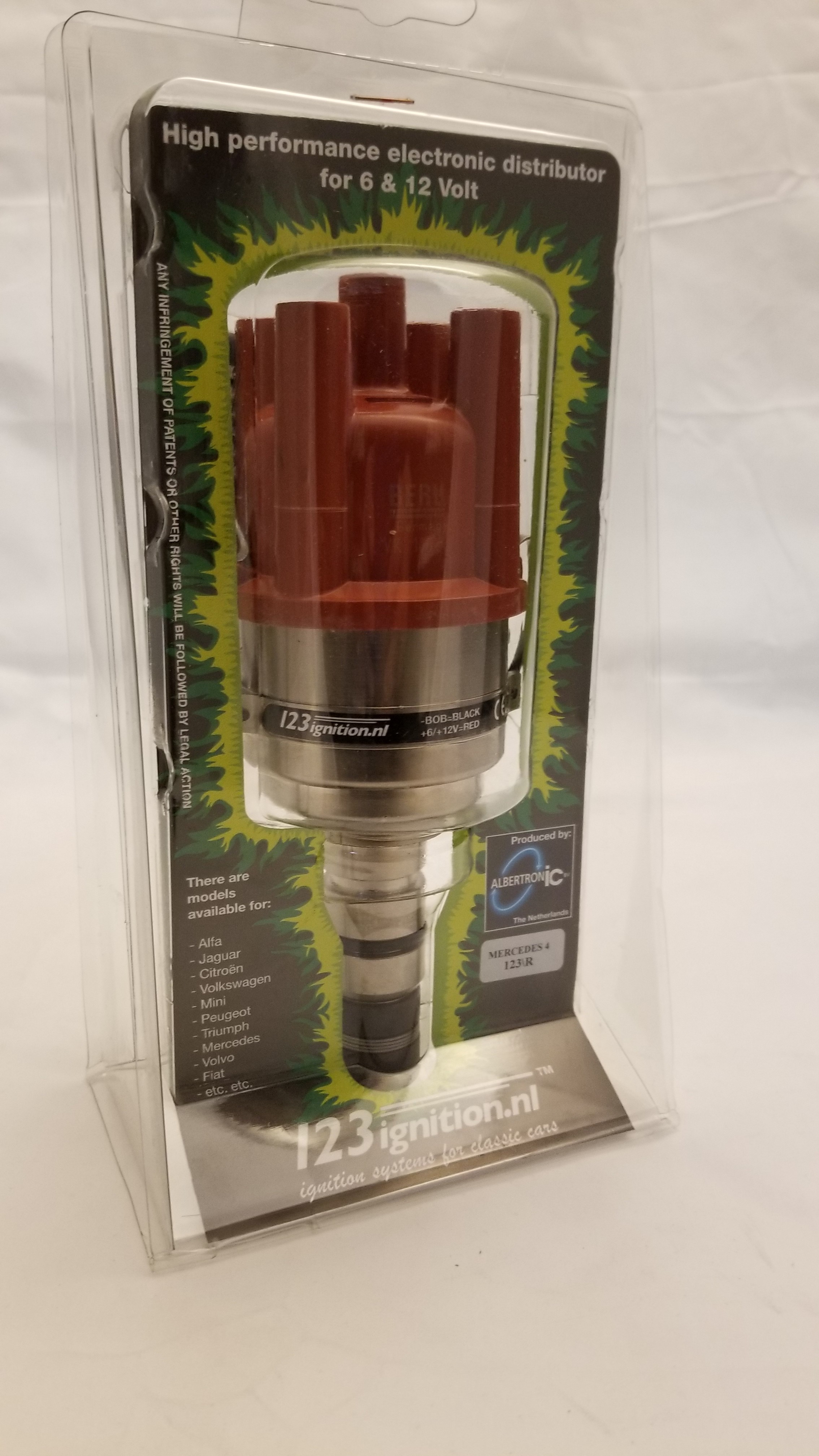

123 4CYL DISTRIBUTOR KIT W/COIL
Product information "123 4CYL DISTRIBUTOR KIT W/COIL"
The 123/MERCEDES-4-R-V distributor is designed for the W110, W115 and W123 engines
The 123/MERCEDES-4-R-V is designed for the W110, W115 and W123 engines in the Mercedes:
- 190C
- 200
- 220
- 220US
- 230
- L409, curve 1
- L408, curve 1
Features of the 123/Mercedes-4-R-V electronic ignition
Next to the standard-curves, the unit offers optimized advance-curves for driving on LPG or E85, the new Bio-Ethanol-fuel of the future. The unit has a built-in LED for easy static timing and several different advance-curves.
It also offers:
- Vacuum advance
- Automatic dwell
- Automatic power-cut after 1 second
- Gear shift retard
Please note the following about the 123/Mercedes-4-R-V
For cars with an electronic fuel injection-system (which need a trigger pulse from the ignition), a 123/MERCEDES-4-R-V-IE is available.
Please read the installation manual carefully. It contains more information about motor- and distributor numbers, static timing and the advance-curves, the specifications of the 123-ignition and a step-by-step description of the installation procedure.
In addition to the information in the installation manual the following curve is available:
Curve F - distributor no. VJU4BR17 - Borgward Isabella 1,493 lts. 4 Cyl. WITH vacuum
With the Borgward Isabella it is UTMOST important to static time the ignition at TDC. In case of fine adjusting with the stroboscope this must be done above 3200 rpm at 34 degrees.
Coils and spark plugs
Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether, and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never be overheated again in the future. We recommend the 123 Blue Coil.
